NOOMA-255GT
PROJECT | PARAMETERS |
Model Size: | 2130*800*1320mm |
Axis pitch: | 1410mm |
Ground clearance: | 175mm |
Maximum speed: | >130km/h |
Braking mode: | Hydraulic disc brake |
Form of tire: | Vacuum tire (semi-hot melt) |
Tire Specifications: | 120/70-17; 150/70-17 |
Hub form: | Aluminium alloy |
Hub specifications: | 3.50-17; 4.50-17 |
Lighting form: | LED |
Suspension system: | Inverted/ Central subtraction |
Tank capacity: | 17L |
ECO consumption: | 3.4L/100km |
Battery Specifications: | 12V9AH |
Form of instrument: | TFT color screen |
Rated load: | 150kg |
Net weight: | 177kg |
Displacement : | 248cc |
Maximum power: | 22Kw/9000rpm |
Maximum torque : | 25N.m/7000rpm |
Mode of cooling: | Water cooled |
NOOMA-A1-3
PROJECT | PARAMETERS |
Model Size: | 2060*720*1110mm |
Axis pitch: | 1410mm |
Ground clearance: | 180mm |
Maximum speed: | >135km/h |
Braking mode: | Hydraulic disc brake |
Form of tire: | Vacuum tube |
Tire Specifications: | 110/70-17; 140/70-17 |
Hub form: | Aluminium alloy |
Hub specifications: | 3.00-17; 4.00-17 |
Suspension system: | Positive shock absorption/ Central subtraction |
Tank capacity: | 15 liters |
ECO consumption: | 3.4L/100km |
Battery Specifications: | 12V7AH |
Form of instrument: | LCD |
Rated load: | 150 kg |
Displacement : | 400cc |
Maximum power: | 20.6Kw/8300rpm |
Maximum torque : | 28N.m/6200rpm |
Mode of cooling: | Water cooled |
NOOMA-A1-4
PROJECT | PARAMETERS |
Model Size: | 2050*810*1300mm |
Axis pitch: | 1410mm |
Ground clearance: | 175mm |
Maximum speed: | >135km/h |
Braking mode: | Hydraulic disc brake |
Form of tire: | Vacuum tire (semi-hotmelt) |
Tire Specifications: | 120/70-17; 150/70-17 |
Hub form: | Aluminium alloy |
Hub specifications: | 3.50-17; 4.50-17 |
Lighting form: | LED |
Suspension system: | Inverted / Central subtraction |
Tank capacity: | 15L |
ECO consumption: | 3.4L/100km |
Battery Specifications: | 12V9AH |
Form of instrument: | TFT color screen |
Rated load: | 150kg |
Net weight: | 166kg |
Displacement : | 300cc |
Maximum power: | 22Kw/9000rpm |
Maximum torque : | 25N.m/7000rpm |
Mode of cooling: | Water cooled |

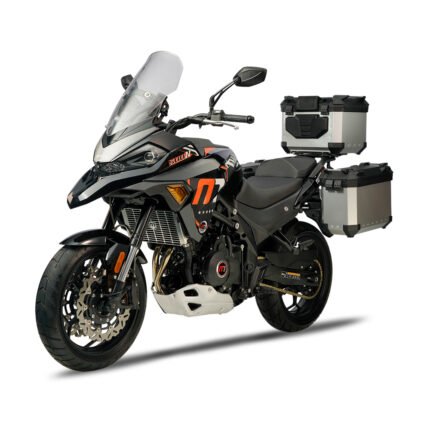

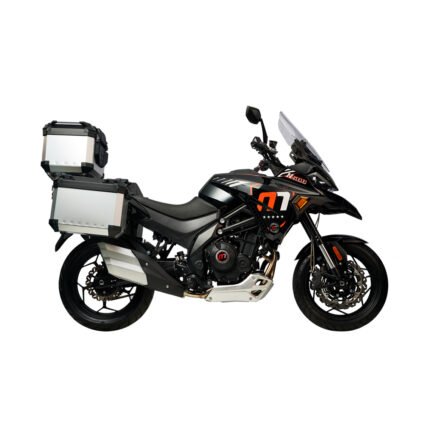

NOOMA-ADV500
PROJECT | PARAMETERS |
Model Size: | 2150*870*1480mm |
Axis pitch: | 1490mm |
Ground clearance: | 196mm |
>135km/h | >140km/h |
Braking mode: | Hydraulic disc brake +ABS |
Form of tire: | Vacuum tire |
Tire Specifications | 120/70-17; 160/60-17 |
Hub form: | Aluminium alloy |
Lighting form: | LED |
Suspension system: | Fr:Upside down Rr:Central subtraction |
Tank capacity: | 18L |
ECO consumption: | 4.2L/100km |
Battery Specifications: | 12V9AH |
Form of instrument: | TFT color screen |
Rated load: | 150kg |
Net weight: | 196kg |
Displacement : | 500cc |
Maximum power: | 22Kw/9000rpm |
Maximum torque | 25N.m/7000rpm |
Mode of cooling: | Water cooled |
NOOMA-HURRICANE NO.ONE
PROJECT | PARAMETERS |
Model Size: | 2080*760*1120mm |
Axis pitch: | 1410mm |
Ground clearance: | 175mm |
Maximum speed: | >110km/h |
Braking mode: | Hydraulic disc brake |
Form of tire: | Vacuum tire |
Tire Specifications: | 110/70-17; 140/70-17 |
Hub form: | Aluminium alloy |
Hub specifications | 3.50-17; 4.00-17 |
Lighting form: | LED |
Suspension system: | Fr:Positive shock absorption Rr:central shock absorption |
Tank capacity: | 15L |
ECO consumption | 3.4L/100km |
Battery Specifications: | 12V7AH |
Form of instrument: | LCD |
Rated load: | 150kg |
Net weight: | 176kg |
Gross weight: | 205kg |
Displacement : | 200cc |
NOOMA-JIYING325S
PROJECT | PARAMETERS |
Model Size: | 1975*740*1100mm |
Axis pitch: | 1375mm |
Ground clearance: | 150mm |
Maximum speed: | >135km/h |
Braking mode: | Hydraulic disc brake |
Form of tire: | Vacuum tube |
Tire Specifications: | 110/70-17; 150/60-17 |
Hub form: | Aluminium alloy |
Hub specifications: | 3.00-17; 4.00-17 |
Lighting form: | LED |
Suspension system: | Inverted/ Central subtraction |
Tank capacity: | 12 liters |
ECO consumption: | 3.5L/100km |
Form of instrument: | TFT |
Rated load: | 150 kg |
Net weight: | 151 kg |
Displacement : | 325cc |
Maximum power: | 28.5Kw/9000rpm |
Maximum torque : | 29N.m/10500rpm |
Mode of cooling: | Water cooled |

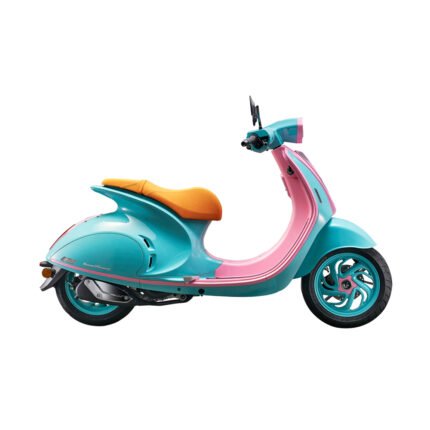

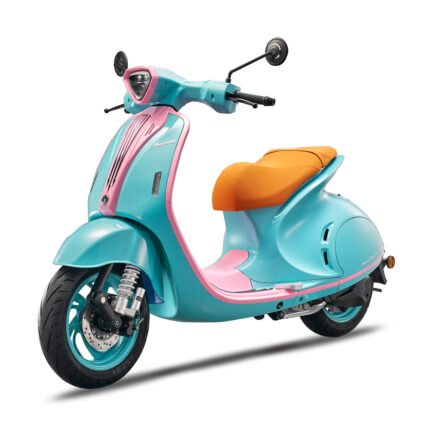

NOOMA-PHOENIX
PROJECT | PARAMETERS |
Model Size: | 2180*765*1075mm |
Axis pitch: | 1413mm |
760mm | |
Maximum speed: | 100km/h |
Braking mode: | Hydraulic disc brake |
Tire Specifications: | 120/70-13; 120/70-13 |
Hub form: | Aluminium alloy |
Hub specifications: | 3.50-17; 4.50-17 |
Lighting form: | LED |
Suspension system: | Single rocker arm is adjustable in three stages |
Rear dual shock absorption | |
Tank capacity: | 9L |
ECO consumption: | 3.4L/100km |
Battery Specifications: | 12V7AH |
Form of instrument: | TFT |
Rated load: | 150kg |
Displacement : | 150cc |
Maximum power: | 1.6Kw/8500rpm |
Maximum torque : | 14.7N.m/7000rpm |
Mode of cooling: | Water cooled |
All-iron body | Keyless start |
USB charging port | Auto-sensing headlights |

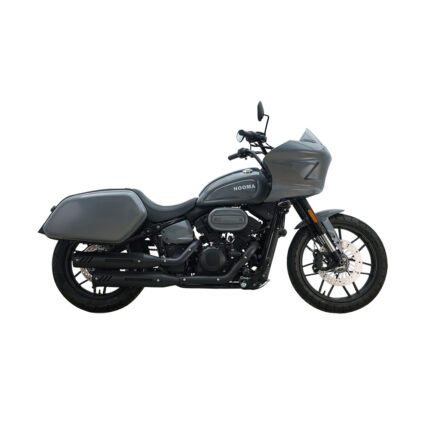

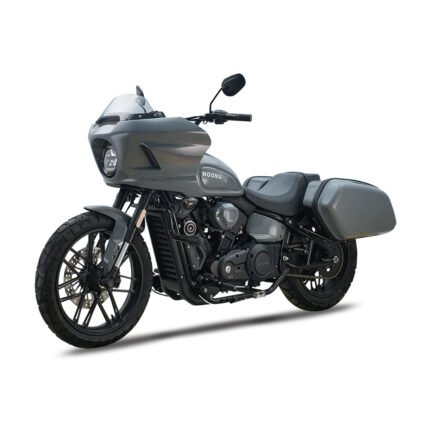

NOOMA-THE ROAD SHAKER
PROJECT | PARAMETERS |
Model Size: | 2250*862*1175mm |
Axis pitch: | 1555mm |
Ground clearance: | 155mm |
Maximum speed: | 160km/h |
Braking mode: | Hydraulic disc brake +ABS |
Form of tire: | Vacuum tube |
Tire Specifications: | 120/70-19; 150/70-17 |
Hub form: | Aluminium alloy |
Lighting form: | LED |
Suspension system: | Fr:Upside down |
Central subtraction | |
Tank capacity: | 14L |
ECO consumption: | 3.2L/100km |
Form of instrument: | TFT color screen |
Rated load: | 150kg |
Net weight: | 211kg |
Displacement : | 320cc |
Maximum power: | 22.5Kw/9000rpm |
Maximum torque : | 25.3N.m/7000rpm |
Mode of cooling: | Water cooled |
NOOMA-TYPHOON TAIZI
PROJECT | PARAMETERS |
Model Size: | 2180*765*1075mm |
Axis pitch: | 1430mm |
Ground clearance: | 175mm |
Maximum speed: | >110km/h |
Braking mode: | Hydraulic disc brake |
Form of tire: | Vacuum tire |
Tire Specifications: | 120/70-17; 150/70-17 |
Hub form: | Aluminium alloy |
Hub specifications: | 3.50-17; 4.50-17 |
Lighting form: | LED |
Suspension system: | Fr:Upside down Rear dual shock absorption |
Tank capacity: | 18L |
ECO consumption: | 3.4L/100km |
Battery Specifications: | 12V7AH |
Form of instrument: | LCD |
Rated load: | 150kg |
Net weight: | 181kg |
Displacement : | 248cc |
Maximum power: | 13.5Kw/9000rpm |
Maximum torque : | 16.5N.m/7000rpm |
Mode of cooling: | Oil cooled |

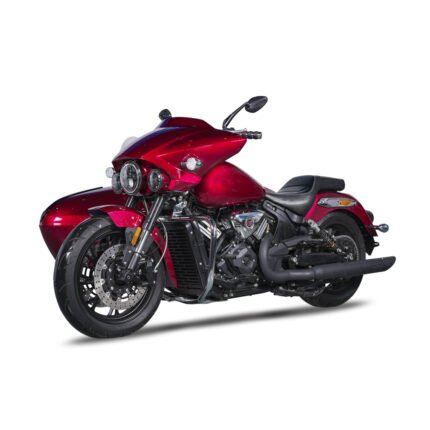

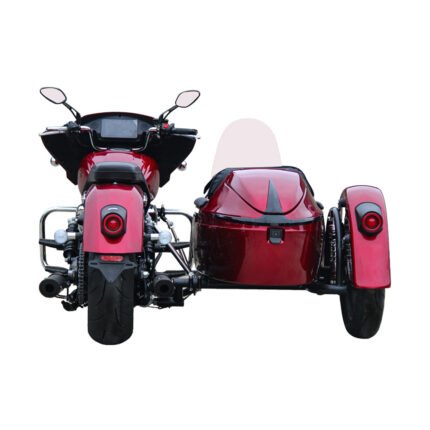

NOOMA-V650
PROJECT | PARAMETERS |
Model Size: | 2380*1720*1100mm |
Axis pitch: | 1600mm |
Braking mode: | Hydraulic disc brake |
Form of tire: | Vacuum tire (semi-hot melt) |
Tire Specifications: | 140/70ZR17; 180/55ZR-17 |
Hub form: | Aluminium alloy |
Lighting form: | LED |
Suspension system: | Fr:Upside down |
Rear dual shock absorption | |
Tank capacity: | 22L |
Form of instrument: | TFT color screen |
Displacement : | 650cc |
Maximum power: | 39Kw/6750rpm |
Maximum torque : | 58N.m/5750rpm |
Mode of cooling: | Water cooled |
NOOMA-YU255S
PROJECT | PARAMETERS |
Model Size: | 2130*800*1320mm |
Axis pitch: | 1410mm |
Ground clearance: | 160mm |
Maximum speed: | >135km/h |
Braking mode: | Hydraulic disc brake +ABS |
Form of tire: | Vacuum tire (semi-hot melt) |
Tire Specifications: | 120/70-17; 150/70-17 |
Hub form: | Aluminium alloy |
Lighting form: | LED |
Suspension system: | Inverted/ Central subtraction |
Tank capacity: | 20L |
ECO consumption: | 3.4L/100km |
Battery Specifications: | 12V9AH |
Form of instrument: | TFT color screen |
Rated load: | 150kg |
Displacement : | 300cc |
Maximum power: | 22Kw/8300rpm |
Maximum torque : | 25N.m/6200rpm |
Mode of cooling: | Water cooled |
